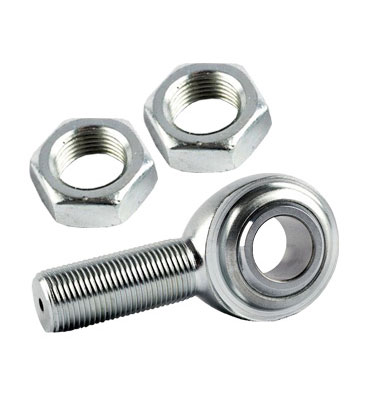

McGill CM 2-piece economy male joints have 2 components; the ball and the body. The ball is inserted into the body and the body is then swaged around the ball to lock it in and it is then loosened to allow it to move. The body is made from Carbon Steel. These joints are ideal for use in areas which do not have a large force present or for gear/throttle linkages or where vibration may be heavy at the ball. These are commonly used on industrial equipment. These joints should be kept lubricated.
BALL: 52100 Bearing Steel ~ Heat Treated ~ Hard Chrome Plated ~ Precision Ground
BODY: Carbon Steel ~ Heat treated ~ Protective Coated for Corrosion Resistance
EXCLUSIVE FEATURES: High Misalignment ~ Cost Effective
USE: Oversize Rod End to be used at a Steering Column Support for a 3/4" diameter Steering Column (3/4" x 0.757" Head)
CM Range - Ideal for Industrial and Budget Motorsport and Marine Applications.
To complement this item, we have a range of other products available in our online store. We supply suitable components in a range of imperial and metric sizes.
