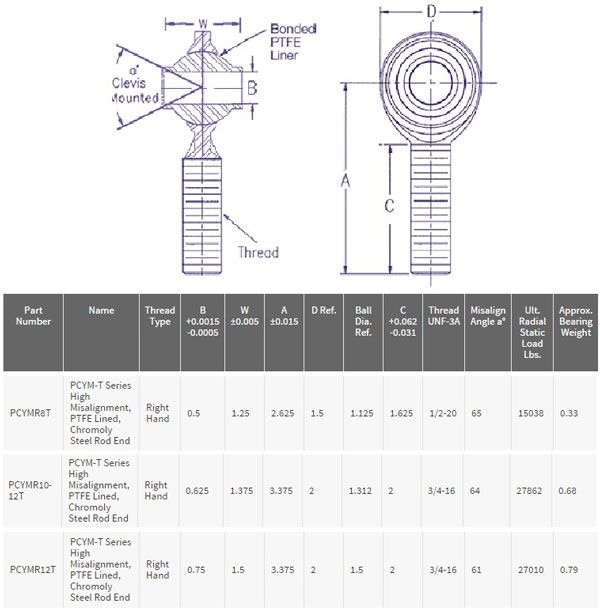

McGill PCYM-T Teflon Lined Series 2-piece male joints have 3 components; the ball, the liner and the body. The ball is inserted into the body and the body is then swagged around the ball to lock it in and it is then loosened to allow it to move. The body is made from Chrome Moly Steel. These joints are ideal for use in areas which require a high strength joint which requires a very high degree of misalignment and a tight fitted ball. These joints are ideal for use in areas where the joint is constantly in motion as the liner insures the ball moves freely without any knocking or play being induced. These are commonly used in motorsport.
BALL: 52100 Bearing Steel ~ Heat Treated ~ Hard Chrome Plated ~ Precision Ground
LINER: Teflon Liner between Ball and Body
BODY: Chrome Moly ~ Heat treated ~ Protective Coated for Corrosion Resistance
EXCLUSIVE FEATURES: High Misalignment ~ Cost Effective ~ Teflon Lined
To complement this item, we have a range of other products available in our online store. We supply suitable components in a range of imperial and metric sizes.
