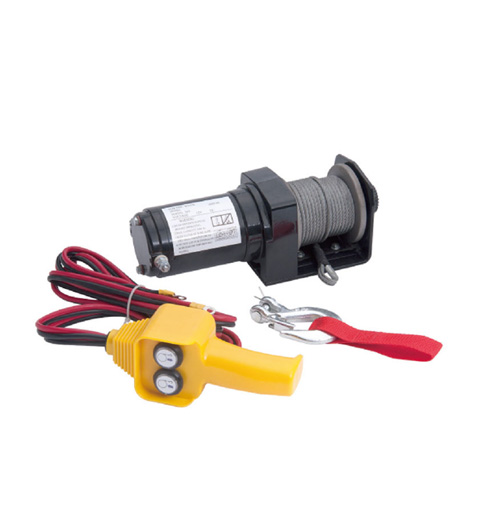

This electric winch is designed for vehicle recovery. The free spool clutch included is operated by a pull and turn knob which disengages the gearbox to allow the wire rope to be pulled out without using electric power. A tension plate reduces backlash and snaring when pulling out the wire rope. Equipped with a permanent motor, this device is suitable for intermittent duty application. Delivery includes: 1 x winch, 1 x wire remote control, 1 x hook with cable, power cable and mounting accessories such as screws and nuts.



Max. line pull: 907 KG

Max. current: 120 Amp

Motor: 1.0 HP, DC 12 V permanent magnet

Gear ratio: 153:1

Gearing: Differential planetary

Wire rope length: 15 m

Weight: 6 KG

Dimensions (cm) : 32.5 X 23 X 18

Drum diameter: 31.75 mm

Control: Wire remote control switch



FEATURES



• Salt spray corrosion-resistance and zinc-plated tie rods for long life

• O-ring sealed motor and drive train keeps out moisture

• Rugged all metal gear sets

• Strong gear ratio

• High strength glass-filled composite nylon housing
