5/16" (8mm) Inner Diameter Stainless Steel Braided Fuel Hose | Ideal for AN-6 Fittings

McGill products are manufactured under strict quality control procedures.

DESIGN

• Rubber fuel hose with stainless steel braided outer.
• Protective braid greatly reduces possibility of breakdown through chafing.
• Standard 8mm internal diameter, 12.5mm outer diameter.
• Outer stainless steel braiding.

USE

• Suitable for low pressure applications such as vehicles with carburettors.
• Suitable for use with Unleaded Petrol.
• Use with Magna clips or jubilee clips.
• Sold per metre.

EXCLUSIVE FEATURES

• Fully safety tested under strict quality control procedures
• Long Life hose made with quality materials.

SPECIFICATION

• Inner Diameter: 8mm (+/- 0.4mm)
• Outer Diameter: 12.5mm (+/- 0.7mm)Wall thickness: 2.5mm
• Working Pressure: 145 PSI (10 BAR MAXIMUM)
• Bursting Pressure: 725 PSI (50 BAR)
• Operating Temperature: -35° to + 95°

Braided Fuel Hose - Used in Motorsport and Road Going Applications.

Please consult a mechanic/expert for installation as fuel can be very dangerous and fuel products should be fitted with caution. Care should be give to all connection points of the hose and band radius must be considered.

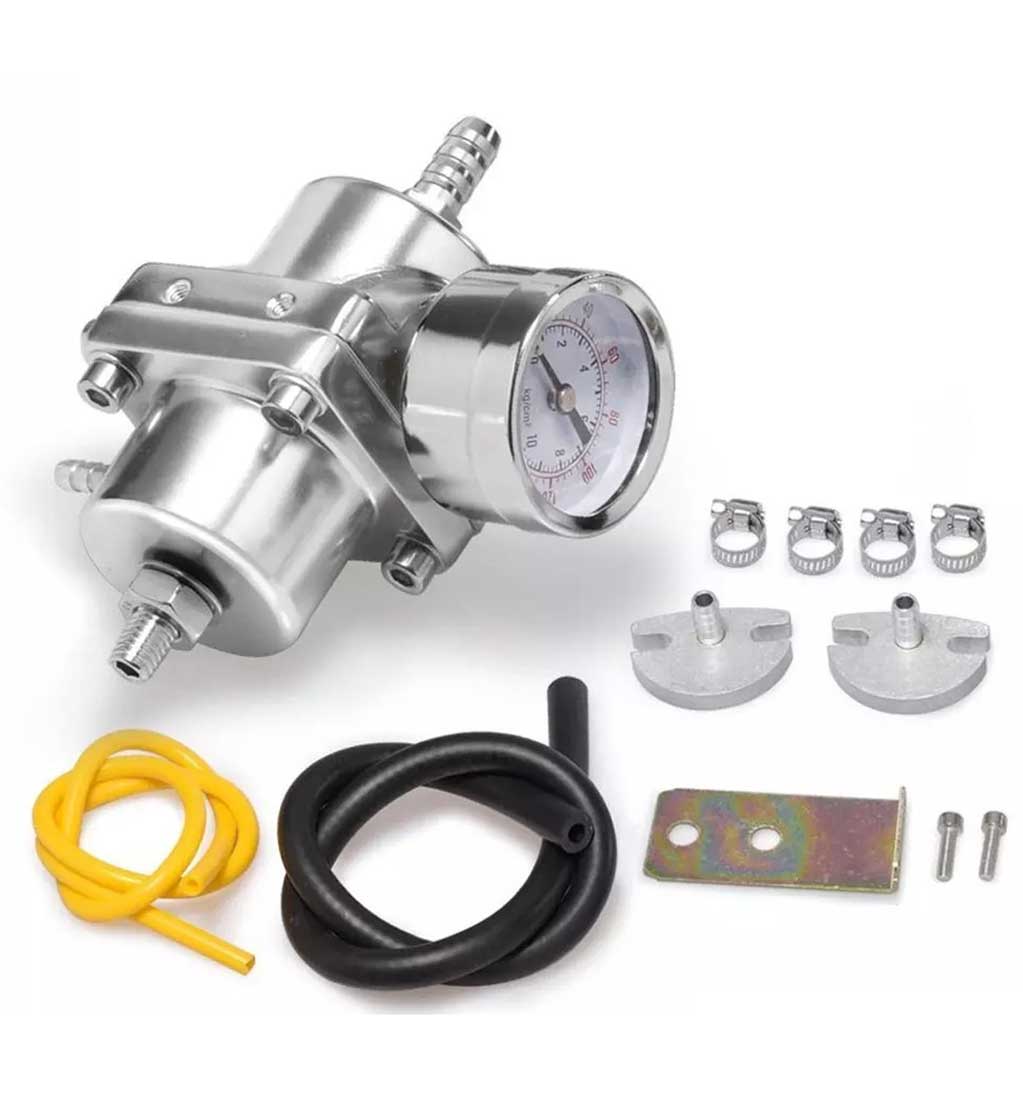

To complement this hose, we have a range of other products available in our online store. We supply fuel pumps and fuel regulators etc.
